Mobile LiDAR (Light Detection and Ranging) is an advanced, vehicle-mounted laser scanning system designed to capture high-density 3D point cloud data of the physical environment. The technology integrates laser sensors, GNSS (Global Navigation Satellite System), and IMU (Inertial Measurement Unit) components to create precise 3D models of terrains, roads, buildings, and infrastructure, all while the platform is in motion.
This approach allows surveyors, engineers, and planners to achieve fast, safe, and detailed mapping results that support a wide range of applications, from road design and asset management to urban planning and environmental monitoring.
What is Mobile LiDAR Surveying?
A Mobile LiDAR survey involves collecting geospatial data using laser scanning sensors mounted on a moving vehicle such as a car, train, or boat. As the platform moves, the LiDAR sensor emits millions of laser pulses per second toward the surroundings. The time it takes for each pulse to return is measured and converted into distance data.
When combined with GNSS positioning and IMU orientation data, these measurements create a georeferenced 3D point cloud, a digital replica of the environment. This high-resolution dataset enables detailed spatial analysis and serves as a base for engineering, planning, and mapping applications.
How Mobile LiDAR Works?
The functioning of a mobile LiDAR system can be divided into several critical stages:

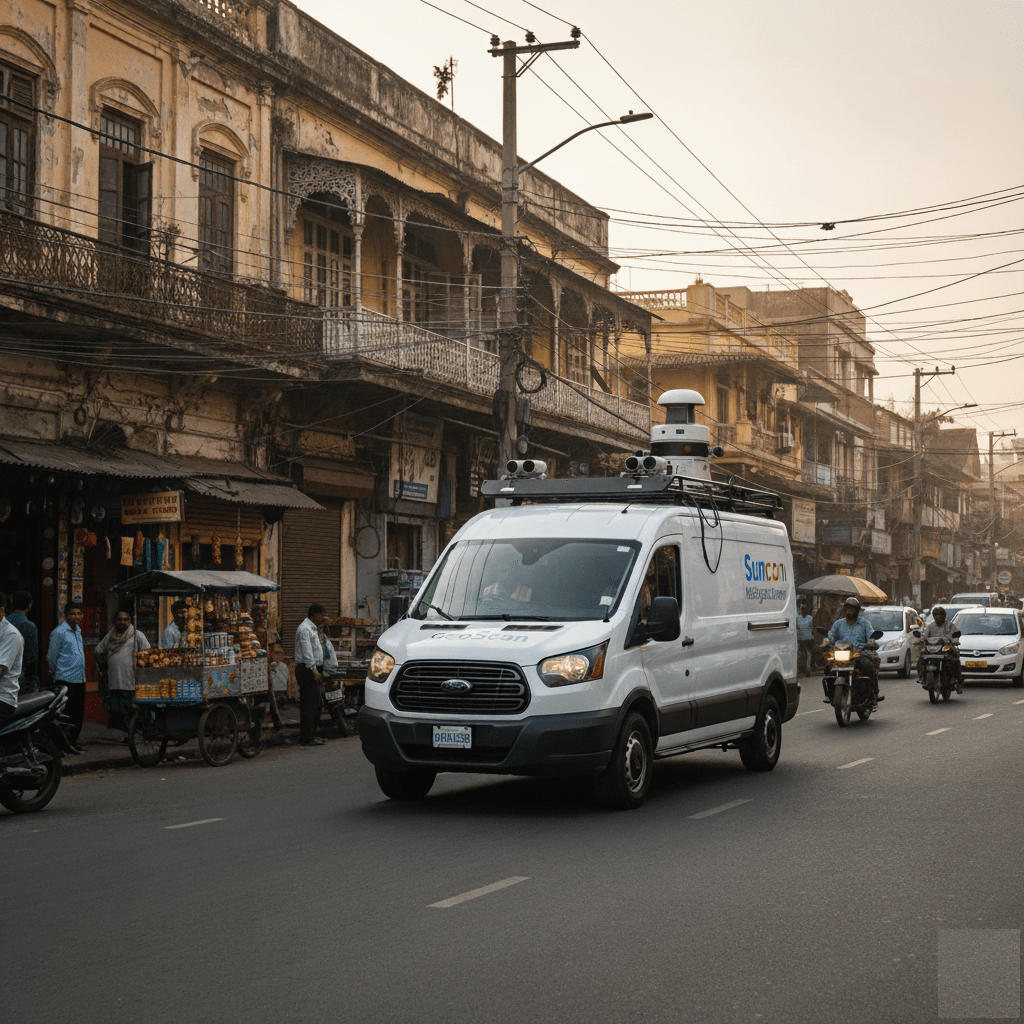

- System Setup: The LiDAR unit, GNSS receiver, and IMU are securely mounted on a vehicle. Additional sensors such as RGB cameras or panoramic imaging systems can be integrated to capture visual information for colorized 3D mapping.
- Data Acquisition: As the vehicle travels along roads, railways, or other routes, the LiDAR sensor emits laser pulses in multiple directions. Each reflected pulse represents a single data point in space. The GNSS determines the position, while the IMU records orientation, together ensuring every point is accurately georeferenced.
- Data Processing: The collected data (raw point clouds) are processed using specialized software to filter noise, align multiple scans, and generate accurate 3D models.
- Analysis and Output: The processed datasets can be converted into digital elevation models (DEMs), topographic maps, contour plans, or as-built documentation for various engineering and GIS applications.
Main Components of a Mobile LiDAR System
- LiDAR Sensor: Generates and measures laser pulses to capture surface geometry.
- GNSS Receiver: Provides spatial coordinates (latitude, longitude, altitude) with high accuracy.
- IMU (Inertial Measurement Unit): Measures pitch, roll, and yaw to determine the platform’s movement.
- DMI (Distance Measurement Instrument): Tracks vehicle movement for trajectory correction.
- Cameras: Capture images that can be overlaid with point clouds for realistic 3D visualization.
- Data Controller & Storage Unit: Manages data acquisition and saves raw datasets.
- Processing Software: Converts raw data into usable geospatial outputs compatible with CAD, GIS, and BIM systems.
Applications of Mobile LiDAR Surveying
Mobile LiDAR technology is versatile and applicable across multiple industries. Some of the most common uses include
- Transportation and Road Mapping
- Detailed roadway surveys and alignment verification
- Pavement condition analysis and surface modeling
- Bridge and tunnel clearance assessments
- Road inventory and asset management
- Urban Planning and Smart City Projects
- 3D city modeling and digital twin creation
- Utility and street furniture mapping
- Urban infrastructure audits
- Integration with Building Information Modeling (BIM)
- Rail and Transit Infrastructure
- Railway corridor mapping and clearance surveys
- Tunnel and bridge documentation
- Overhead line equipment (OLE) mapping
- Utilities and Energy
- Power line and pipeline corridor mapping
- Asset inspection and condition monitoring
- Right-of-way (ROW) analysis
- Environmental and Land Studies
- Flood risk and drainage analysis
- Vegetation mapping and forest inventory
- Erosion and terrain change monitoring
- Mining and Industrial Applications
- Stockpile volume estimation
- Mine site mapping and operational planning
- Safety and hazard zone mapping
Advantages of Mobile LiDAR Survey
|
Technical Specifications
- Laser Pulse Rate: 300,000 to 2,000,000 pulses per second
- Point Density: Up to 1,000 points/m²
- Range Accuracy: 1–3 cm
- Scan Angle: ±40° to ±60°
- Position Accuracy: ±5 cm (depending on GNSS conditions)
- Operational Speed: Up to 100 km/h
These specifications make mobile LiDAR ideal for capturing long linear features like roads, railways, and pipelines with exceptional precision.
Limitations and Challenges
Despite its strengths, mobile LiDAR also presents certain challenges:
- High Initial Investment: Advanced LiDAR systems are costly to procure and maintain.
- Large Data Volume: Point clouds generate massive datasets requiring robust storage and processing capabilities.
- GNSS Signal Dependency: Reduced accuracy in tunnels, dense urban areas, or forests due to signal obstruction.
- Complex Post-Processing: Requires skilled professionals for classification, filtering, and modeling.
Continuous innovations in AI-based classification, cloud computing, and SLAM (Simultaneous Localization and Mapping) technology are helping overcome many of these issues.
Comparison: Mobile LiDAR vs Traditional Surveying
|
Future Scope of Mobile LiDAR
The future of mobile LiDAR technology is geared toward automation, integration, and real-time analytics. As autonomous mapping systems, AI-driven feature extraction, and machine learning algorithms evolve, LiDAR data processing will become faster and more intuitive.
Integration with UAV LiDAR (drone-mounted systems), terrestrial scanning, and cloud-based analytics will allow seamless data fusion for digital twins, smart cities, and infrastructure management.
Mobile LiDAR is also expected to play a central role in autonomous vehicles, road safety studies, and environmental monitoring, making it an indispensable tool for the future of geospatial technology.
The Mobile LiDAR Survey has become a vital tool for modern geospatial mapping, offering an unmatched combination of speed, accuracy, and safety. Whether it’s infrastructure design, environmental analysis, or asset management, mobile LiDAR delivers rich spatial insights that empower professionals to make data-driven decisions.
As technology evolves, mobile LiDAR will continue to redefine the standards of precision mapping driving smarter, safer, and more sustainable development across industries.
FAQ’s
- How accurate is mobile LiDAR data?
Mobile LiDAR can achieve 2–5 cm accuracy, depending on environmental conditions, sensor calibration, and GNSS quality.
- What is the difference between mobile and aerial LiDAR?
Mobile LiDAR is ground-based and mounted on moving vehicles for corridor and road mapping, while aerial LiDAR (mounted on drones or aircraft) is used for large-area topographic mapping.
- Can mobile LiDAR operate in poor weather conditions?
Light rain or overcast conditions generally do not affect LiDAR accuracy, but heavy rain, fog, or dust can reduce laser reflection quality.
- What are the main applications of mobile LiDAR surveys?
They are widely used for road and railway mapping, asset inventory, urban modeling, environmental monitoring, and infrastructure inspection.
- Is LiDAR data compatible with GIS and CAD software?
Yes, LiDAR data can be processed and exported into GIS, CAD, and BIM formats for engineering design and analysis.
