A Cadastral or Boundary Survey is a precise, legally governed method of mapping and documenting land parcel boundaries. It plays a foundational role in land management systems, particularly in the areas of land subdivision and infrastructure development. These surveys ensure accurate spatial data, legal clarity of land extents, and support for high-value decision-making in urban planning, industrial development, and public utility deployment. With the increasing demand for organized urban expansion and structured rural development, cadastral survey have become indispensable for facilitating planned growth and ensuring lawful land utilization.
Purpose and Scope in Development Contexts
Traditionally, cadastral survey were performed for recording land ownership and preparing property tax maps. However, their application has greatly expanded. Today, cadastral survey form the technical backbone for:
- Subdivision of land into smaller, legally recognized parcels.
- Spatial planning for roads, drainage, water supply, and utility corridors.
- Land acquisition and alignment verification for public infrastructure projects.
- Development of GIS-based land management and zoning systems.
Methodology: Technical Steps and Survey Design
Cadastral survey typically involve both office-based planning and field-based execution.
Office Preparation
Surveyors begin by collecting legal documents, historical maps, and field measurement records. The project area is overlaid on topographic base maps or high-resolution satellite imagery to identify terrain features and boundary references. Control points, either established through prior geodetic surveys or generated from GNSS networks, are selected.
The adopted coordinate system (e.g., WGS-84 UTM Zone) is used to ensure spatial consistency, especially important for large-scale subdivision or infrastructure corridor planning.
Field Survey Operations
Field teams use advanced survey instruments like Total Stations, RTK GPS, and Digital Levels. The process includes:
- Establishing closed traverses with angular and distance observations.
- Conducting boundary traverses and intermediate detail pickups.
- Setting out new boundary lines for subdivision or right-of-way (RoW) corridors.
- Marking boundary corners with permanent monuments like concrete pillars or iron rods.
Closure errors are adjusted using Bowditch’s Rule or least squares adjustment to maintain network integrity. Final data is downloaded and processed in CAD/GIS platforms.
Land Subdivision Applications

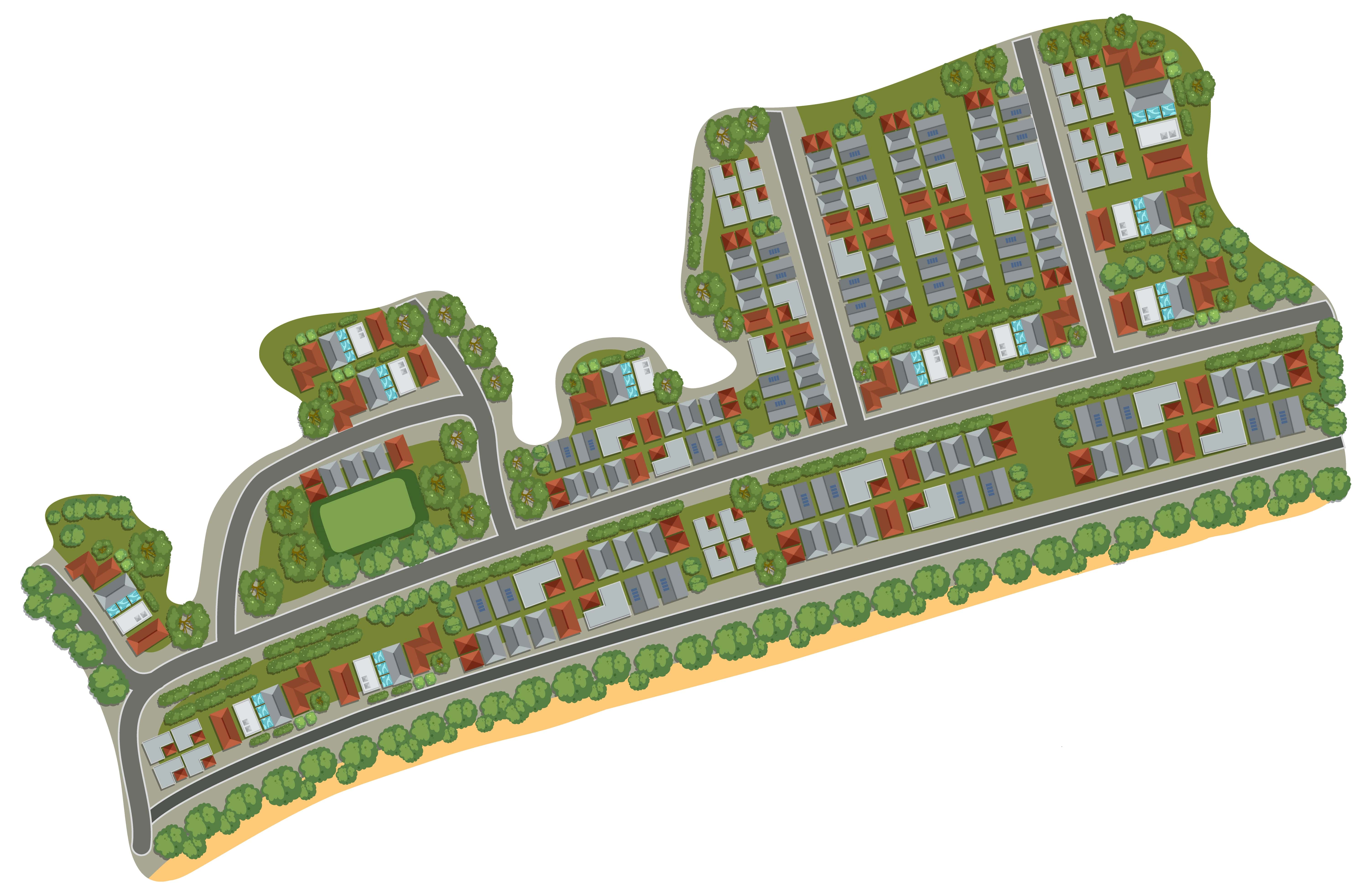

Land subdivision involves dividing a larger parcel into smaller, legally distinct plots. This is commonly required for residential layouts, industrial parks, agricultural distribution, or land pooling schemes.
Subdivision Process Overview
- Site Measurement: The parent land parcel is surveyed to determine its exact dimensions and area.
- Subdivision Layout Design: CAD or GIS software is used to design new plots considering:
- Local zoning regulations.
- Minimum plot size requirements.
- Road width and setback rules.
- Provision for open spaces and amenities.
- Boundary Marking: New plot corners are marked on ground using 15×15×45 cm concrete markers with engraved or painted codes.
- Area Computation: Polygon areas are calculated using coordinate geometry, with tolerances kept below ±0.5% of the actual area.
Technical Specifications
- Horizontal Accuracy: ±5 cm to ±15 cm depending on terrain and equipment.
- Minimum plot size: As defined by local planning authorities, often starting at 50–100 sq.m in urban areas.
- Plot identifiers: Assigned using unique survey numbers or GIS-based parcel IDs.
Cadastral maps from subdivision surveys are submitted to town planning authorities and integrated into municipal GIS systems for approval and further development planning.
Infrastructure Development Applications
Accurate cadastral data is vital for designing, acquiring, and executing infrastructure projects such as highways, metros, pipelines, power transmission lines, and industrial corridors.
Cadastral survey are used For:
- Identify affected parcels and owners for land acquisition.
- Prepare Land Acquisition Plans (LAPs) showing exact boundaries and extents.
- Design Right of Way (RoW) corridors with accurate geometric alignment.
- Avoid disputes or delays by ensuring boundary validation before construction begins.
Integration with Topographic and Utility Data
Surveyed boundary data is integrated with topographic mapping and utility overlays to create complete project drawings. These help in:
- Route alignment optimization.
- Estimating compensation based on land value and affected area.
- Reducing cost overruns caused by boundary-related litigation.
Technological Inputs
Infrastructure-focused cadastral survey often employ:
- RTK GNSS receivers for sub-decimeter positioning.
- CORS (Continuously Operating Reference Stations) for real-time accuracy.
- GIS platforms to manage multiple layers (e.g., parcel data, road network, drainage).
- Drone photogrammetry for rapid survey of large corridor alignments.
The final outputs support design validation, legal documentation, and inter-agency coordination.
Boundary Marking: Permanent Ground Truthing
A critical deliverable of cadastral survey, especially in subdivisions and infrastructure corridors, is the boundary marking phase. Physical markers ensure on-ground clarity and act as reference points for construction, fencing, and inspection.
Types of Boundary Markers
- Concrete pillars (15x15x45 cm) embedded into the ground.
- Iron pegs or angle iron posts for temporary marking.
- Stone markers used in hilly or forested terrain.
Each marker is placed based on precise GPS or Total Station measurements and given a unique code. In modern systems, QR codes or RFID tags are added to allow digital verification through mobile apps linked to cadastral databases.
Survey Instruments and Accuracy Parameters
|
Error adjustment is essential. Misclosures in angles and distances are corrected using standard surveying formulas to ensure network closure within prescribed tolerances, often 1:5000 or better.
Outputs and Technical Deliverables
Cadastral survey for subdivision and infrastructure projects produce a comprehensive set of technical outputs:
- Georeferenced Cadastral Maps in .shp, .dxf, or .pdf formats.
- Field Books and Control Reports with details of equipment used, coordinates, and adjustments.
- Land Parcel Polygon Data with area and dimension attributes.
- Boundary Marking Sketches and monumentation records.
- Land Acquisition Plans showing impacted parcels with overlays of roads, drains, etc.
Government Initiatives and Digitization
The Government of India has rolled out several programs to support digital cadastral mapping and survey-based planning:
- DILRMP (Digital India Land Records Modernization Programme): Digitizes spatial and ownership data.
- BhuNaksha Portal: GIS-based cadastral mapping tool used in many Indian states.
- SVAMITVA Scheme: Focuses on drone-based cadastral survey in rural areas, promoting formal documentation and layout planning.
Cadastral and boundary surveys are indispensable for structured land use planning, particularly in land subdivision and infrastructure development contexts. Their technical rigor, supported by advanced instrumentation and geospatial software, ensures spatial accuracy, legal validity, and seamless integration with urban and rural planning systems. As India and other nations embrace large-scale urbanization, the demand for precise cadastral survey will continue to grow, forming the bedrock for sustainable development, efficient land use, and conflict-free infrastructure expansion.
